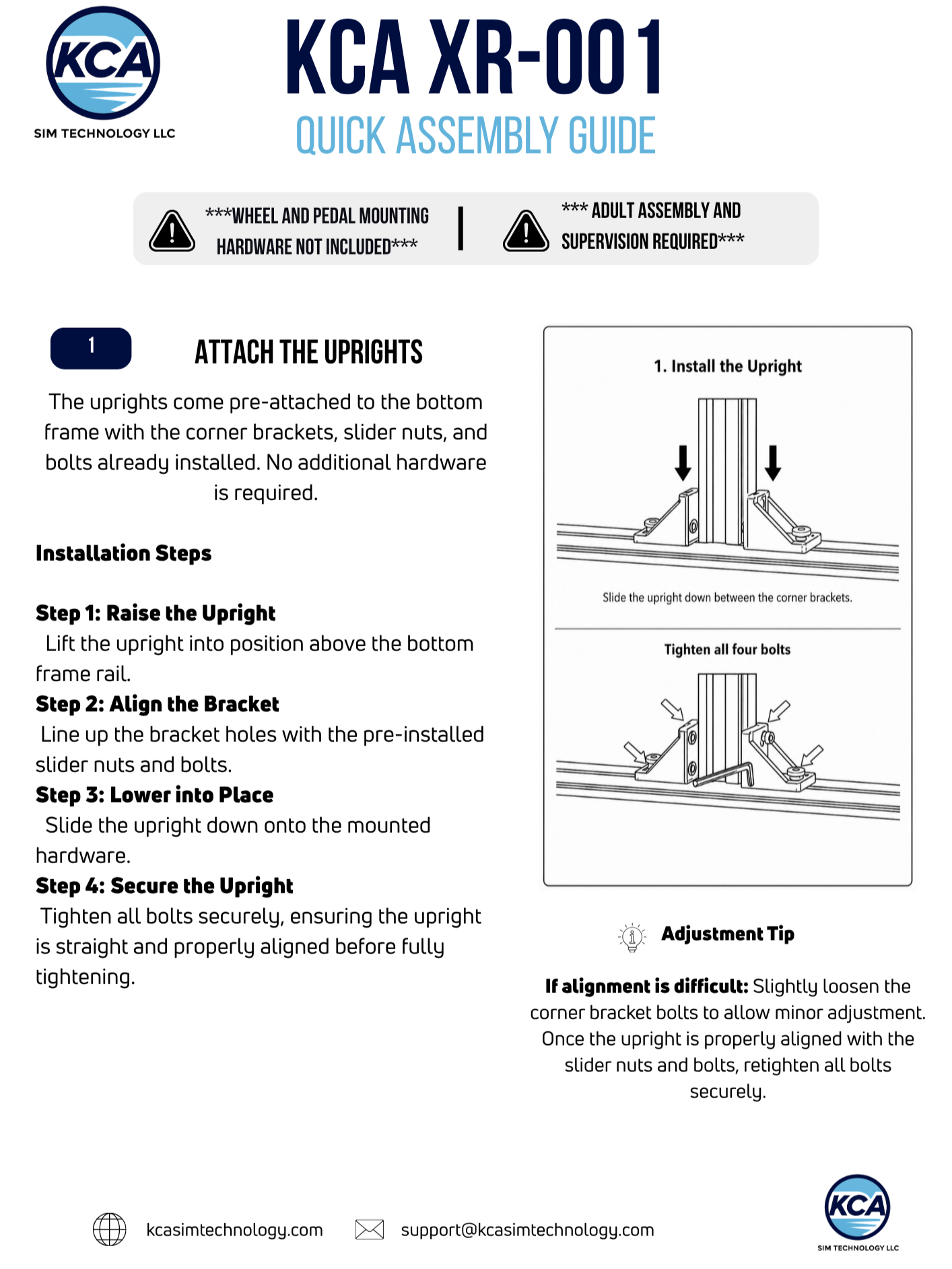

KCA XR-001 youth sim racing cockpit quick assembly guide showing how to attach uprights to the bottom frame with corner brackets and bolts.

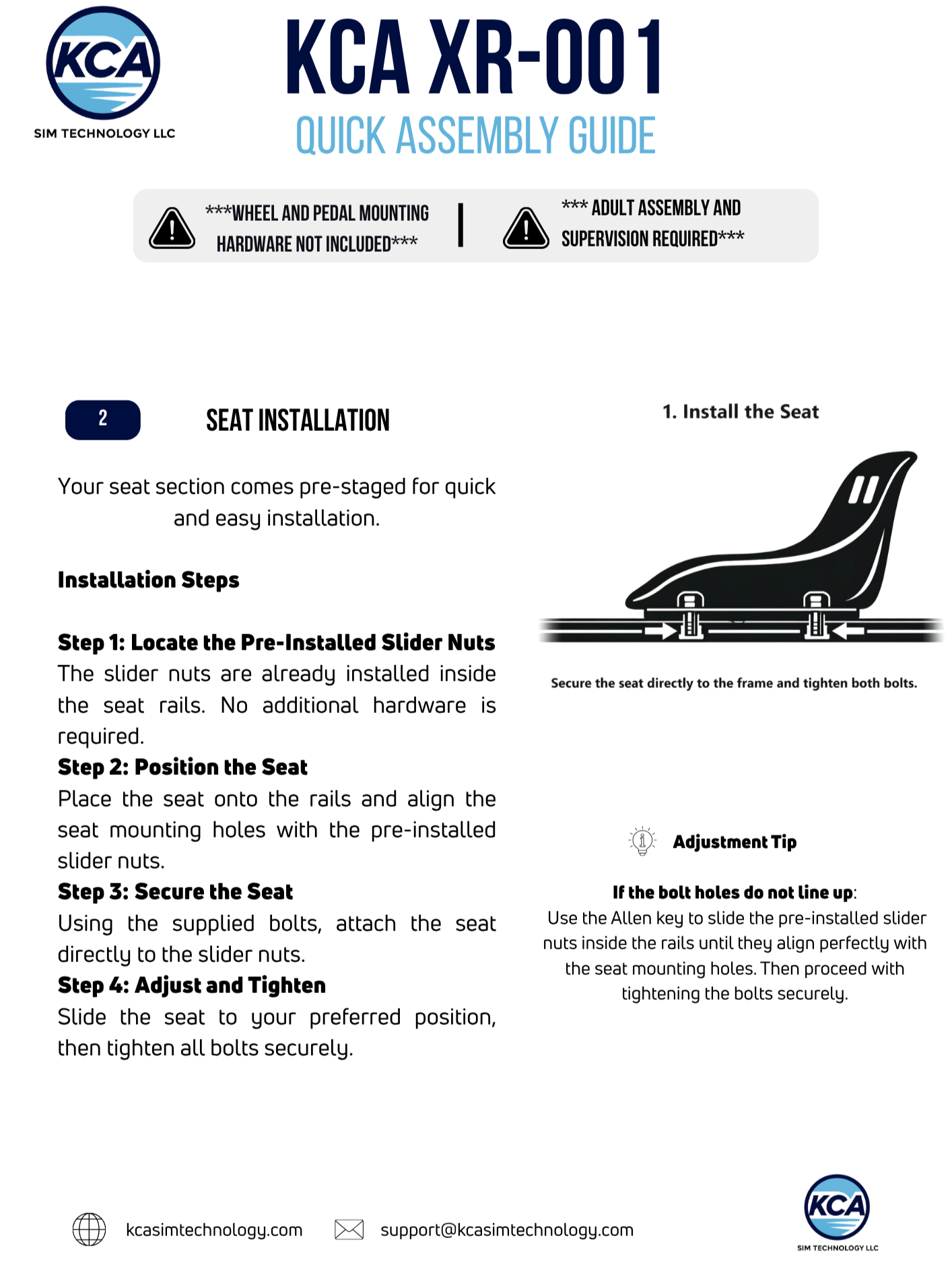

KCA XR-001 youth sim racing cockpit quick assembly guide showing seat installation steps and seat mounting diagram.

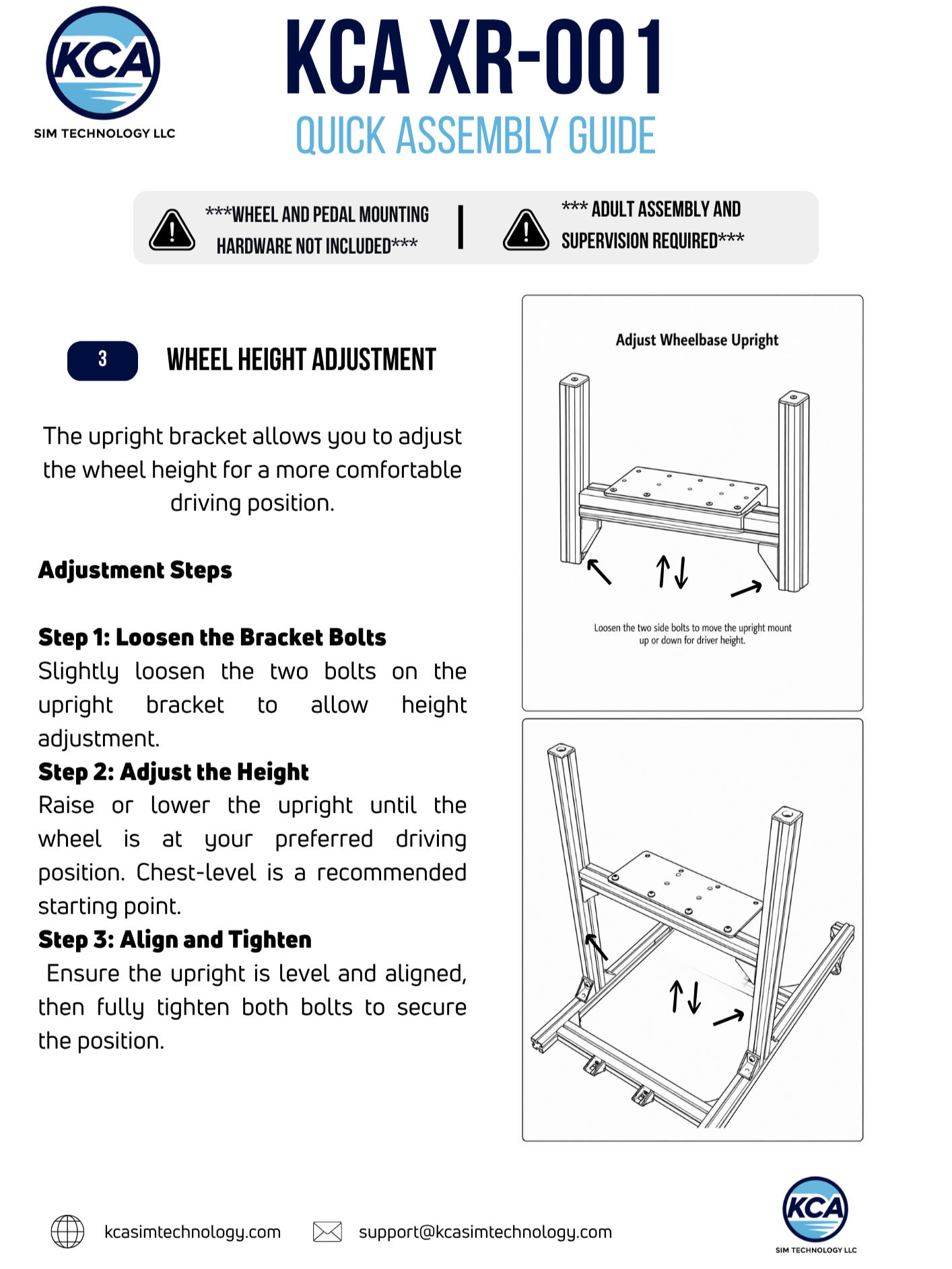

KCA XR-001 youth sim racing cockpit quick assembly guide showing wheel height adjustment steps for a racing simulator cockpit, with upright bracket diagrams and safety instructions.

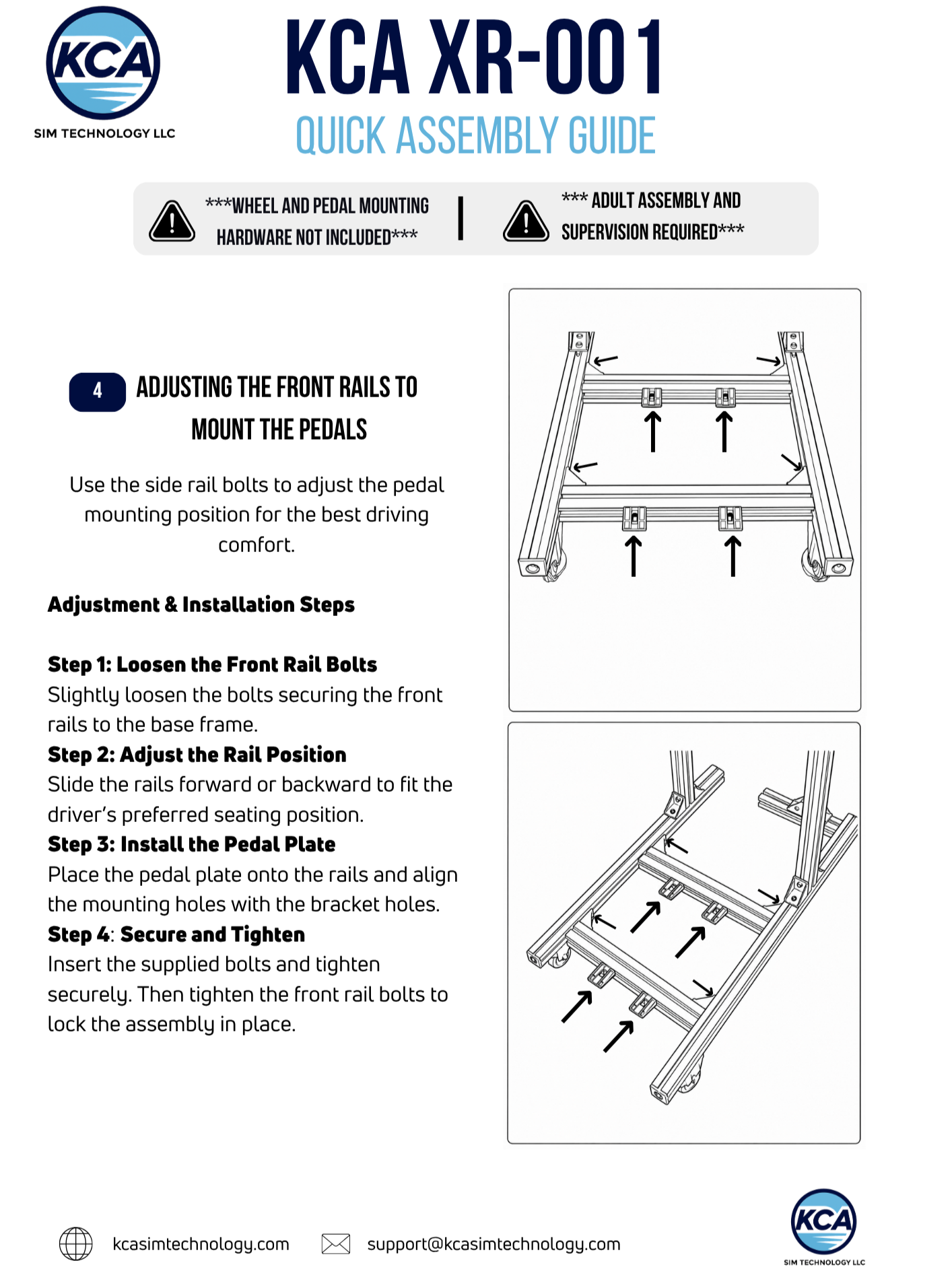

KCA XR-001 youth sim racing cockpit quick assembly guide showing how to adjust front rails and mount pedal plates on a racing simulator frame.
